Split&Print™ for Windows OS,
Wall Art mode of operation


    As soon as new job starts by opening new image file or reopening current one, app creates list of pages with source image segments to be printed out using requested paper size, printer margins and overlaps. In wall art creation mode all the segments have identical sizes and can be used for multi-panel wall splits. Printing orientation (Portrait/Landscape) is determined by source image orientation.
  In wall art creation mode overlap is the area inside of the cut dashed line which does not belong to the page, it is the area covering thickness of the page's panel.

Overlap size    In wall art creation mode list of overlaps can be modified by user - up to 16 different overlaps in the list is allowed, maximum overlap size is 2".

Wall Art mode

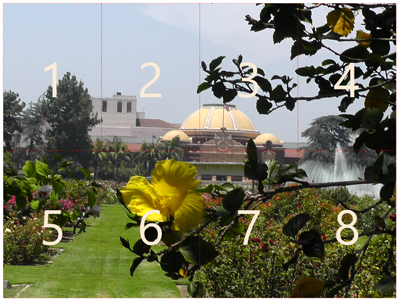

In wall art creation mode app splits the source image based on requested paper size, printer margins and overlap, maintaing identical printable segment sizes on all the pages. Printing orientation (Portrait/Landscape) is determined by source image orientation.
Wall Art mode

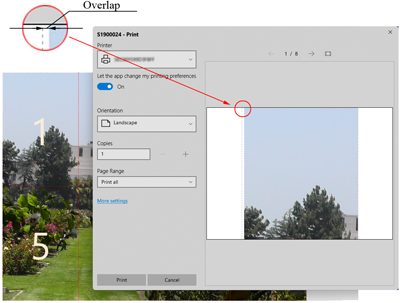

In wall art creation mode purpose of overlap is to provide area to cover panel thickness. Here, left overlap on page 1 has no image.
